GENERATION 6 UPDATES

2017 Improvements and Upgrades

Amsoil Synthetic Shock Oil

Amsoil Synthetic Shock Oil

Radial Bearing Mounts Standard (on MacPherson)

Radial Bearing Mounts Standard (on MacPherson)

Aluminum T6 6061 Mounts and Camber Plates

Aluminum T6 6061 Mounts and Camber Plates

Digressive or “Ultra”  Digressive Piston Technology

Digressive or “Ultra” Digressive Piston Technology

• 24 Step Independent Rebound • 24 Step Independent Compression

• 24 Step Independent Rebound • 24 Step Independent Compression

Rebuildable and Revalveable at our VA Facility

Rebuildable and Revalveable at our VA Facility

Custom Built - Assembly  Certificate and Dyno Graph Supplied with all 4 Shocks

Custom Built - Assembly Certificate and Dyno Graph Supplied with all 4 Shocks

Monotube Damper with High Pressure Nitrogen

Monotube Damper with High Pressure Nitrogen

Swift Springs Standard

Swift Springs Standard

PRO 2-Way
PRO 2-Way
PRO 2-Way
NO RE-VALVES NECESSARY

NO RE-VALVES NECESSARY

The ultra wide range of adjustment offered by the CFD piston allows for the convenience of tuning your suspension without having to revolve your dampers. A conventional shock absorber can withstand a 2kg spring rate difference before requiring a revalve, whereas the Concave Flow Digressive Technology has a broad range of 8kg spring rates. This is invaluable for tuning your suspension quickly at the track on race day.

JEKYLL AND HYDE

JEKYLL AND HYDE

The Concave Flow Digressive Piston allows for a Jekyll and Hyde personality. Lower spring rates can be stiffened up by using the wide damping range as an artificial spring rate, while higher spring rates feel much smoother. The large adjustment range contributes to a comfortable ride on the street and unyielding performance on the track, all with the twist of a single adjustment knob.

PRO 2-Way

OPTIONAL UPGRADES

PRO 2-Way
PRO 2-Way
PRO 2-Way
PRO 2-Way
PRO 2-Way

STANDARD FEATURES

PRO 2-Way

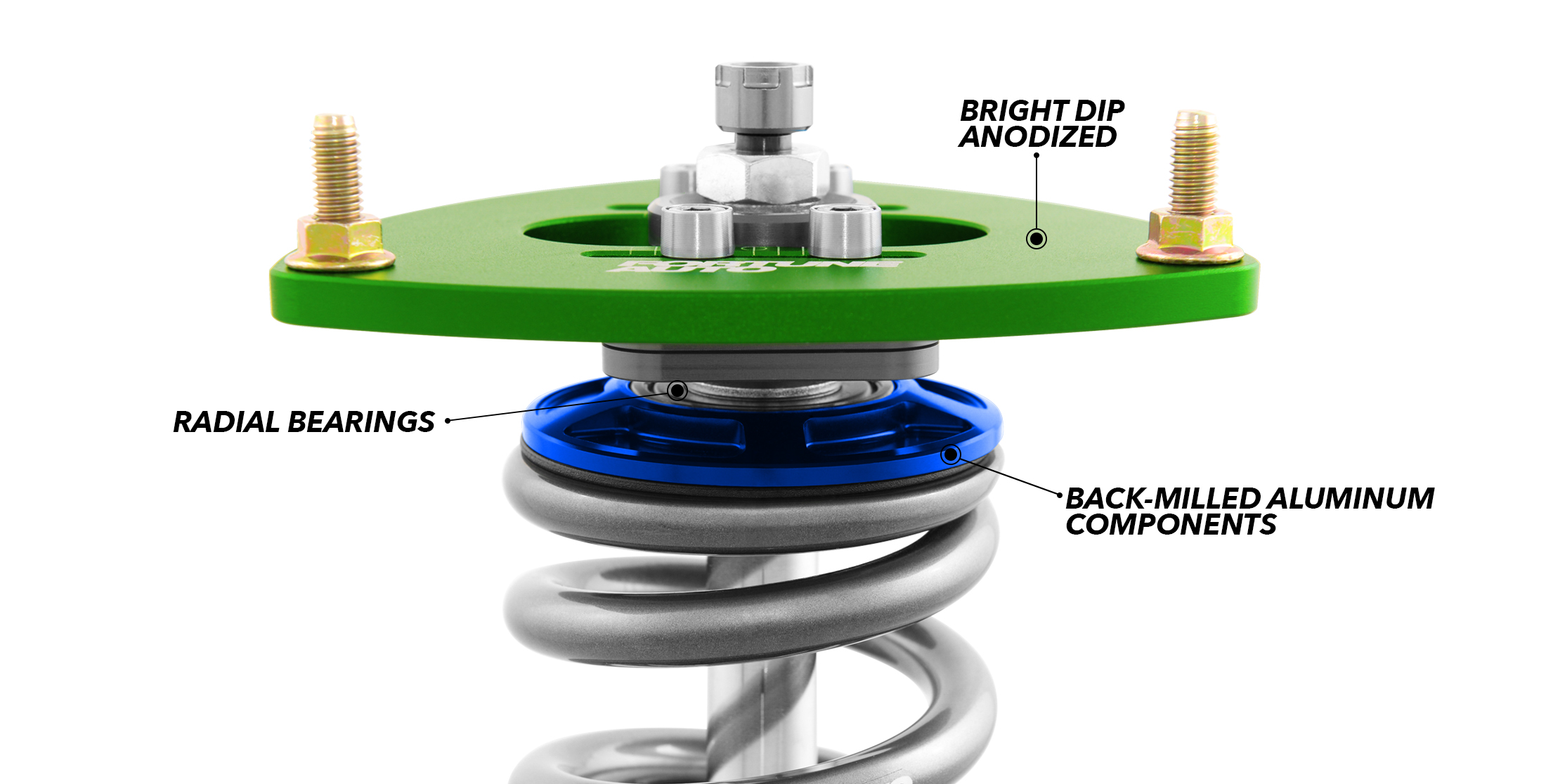

BRIGHT DIP ANODIZED

Bright dip anodizing is a chemical polishing/anodizing process that is very effective in enhancing the integrity of the aluminum. Bright dipping creates a brilliant, shiny surface which protects our 6061 forged aluminum parts from corrosion and oxidation, ensuring that your parts look great for years to come.

REVISED JETTING

Revised jetting and increased adjustment range for more accurate damper control. Every click in the adjustment range has a very profound effect on damping force, and each click is very audible and distinct.

RADIAL BEARING MOUNTS

The high-quality Koyo Japan radial bearing provides less bind for noise-free operation and smoother steering response.

PRO 2-Way

STRONGER PISTON SHAFTS

The delicate science behind the strength of piston shafts can be difficult to perfect. Through extensive research and development, we were able to achieve an optimal balance between shaft hardness and malleability to ensure peak safety and performance.

SWIFT SPRINGS

Swift springs offer superior durability, stroke, weight savings, and most importantly a more compliant ride. They are available in rates from 4k-28k

REDESIGNED SHAFT CAP

New CNC machined adjustment knobs replace the outgoing cast molded knobs. These new machined adjustment knobs are hard anodized and more aesthetically pleasing. Updated shaft end caps are now lighter and showcase a more elegant design.

PRO 2-Way

STRUCTURAL IMPROVEMENTS

Utilizing our engineers’ in-house design software, we reinforced brackets and mounting points for more rigidity and strength. Most applications will include OEM brake line tabs welded directly to the lower mounts, which provides the end user with a cleaner and safer installation.

CFD DIGRESSIVE PISTON™

Digressive piston technology allows for tremendous amounts of low speed force that translates driver inputs into razor sharp control. Furthermore, the force “blows off” to provide the driver with a supple compliant ride while maintaining superior mechanical grip over rough surfaces.

DYNO-TUNED AND TESTED

EVERY Fortune Auto shock absorber is dyno-tested. Once your shock absorbers are built, they are tested and matched, because we refuse to treat our shocks with a “one size fits all” mentality.

PRO 2-Way

INDEPENDENT COMPRESSION

Fortune Auto engineers have improved damping control and adjustment by eliminating the older needle adjuster and now incorporate a digressive piston (base valve) that has it’s own independent shim stack and jetting mechanism inside the remote canister. These features provide for a very wide range of adjustment in low speed and high speed compression.

IMPROVED COOLING

The new canister is larger in size, allowing for greater shock fluid and nitrogen capacity. The increased fluid capacity allows for more consistent operation over a wide range of temperatures.

LARGE NITROGEN VOLUME

The remote canister can now run much lower nitrogen pressures, allowing for a more compliant ride and ability to handle larger curb impact events at the race track without upsetting the balance of the car. Additionally, the extra gas volume helps prevent pressure build up during large stroke events.



Please consult the application list for MAP Pricing (Min Advertised Price)

Custom built to your specifications. Fortune Auto coilovers can only be purchased through authorized Fortune Auto USA dealers. Coilovers are shown with
green springs. Spring color is dependent on application and spring rate. All coilovers are for off road use only and may never be installed on vehicles that will be driven on a public road or highway.


Dreadnoughts are custom built to order in the USA. Most applications have a 4-5 week lead time.

Lead times may vary during peak season.

PRO 2-Way
